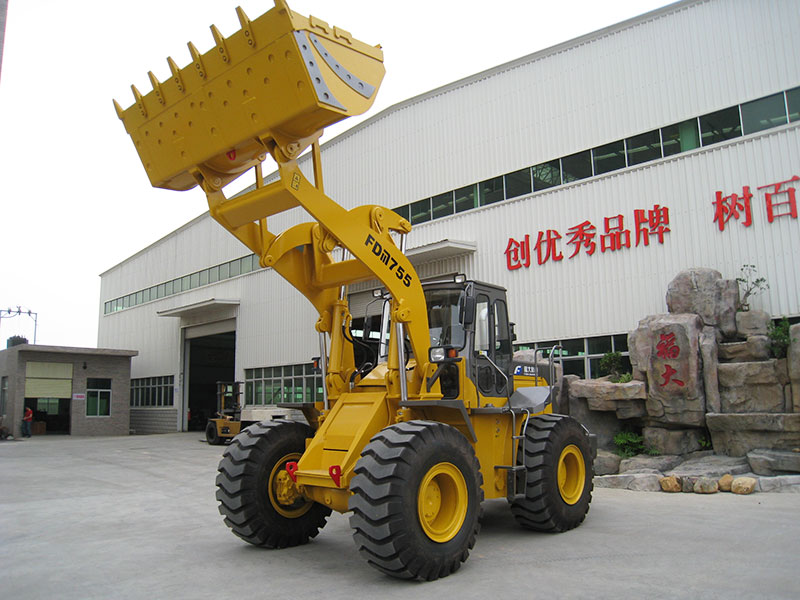

5 ton wheel loader FDM755

Brand:Fuda

Product introduction

Advantage


• Powerful turbocharged diesel engine with 6-cylinder and 4-stroke, which is of excellent performance and reliability.
• Dual-turbine hydraulic torque converter facilitates the gear shifting for easier operation.
• Full hydraulic steering system is easy and flexible for operation.
• Performance of automatic bucket lay-down makes it easier to be operated.
• Four-wheel, dual-line, pliers disc brakes ensure safety and reliability.
• Z-bar loader linkage is capable of strong breakout force.
• Quenched integral cutting edge bucket, more strength and better wearing resistance.
• Optional various implements.


Standard equipment


• Weichai WD615.67G3-28 diesel engine162KW/2200r/min
• Dual-turbine hydraulic torque converter
• Planetary power shift transmission
• Driving axle
• Duplex valve: lift arm and bucket
• Lift cylinder and tilt cylinder
• Standard lift arm, standard 3.0 m3 bucket
• Standard seat
• Standard counterweight
• Bucket lever indicator
• Soft shaft control valve
• Pliers-disc parking brake
• Battery 2x12 v
• New-style counterweight
• Standard tires 23.5-25 (16PR)


Optional equipment


• 3.3 m3 bucket
• Rock bucket
• Side-dumping bucket
• Snow-removing bucket
• Timber clamp
• Straw clamp
• ROPS(roller protective structure)
• Air conditioning system-cool type, warm type, cool & warm type.
• Fire extinguisher
• Diesel engine Shanghai D6121 (CAT license) diesel engine
• Weichai WD615 diesel engine162KW/2200r/min


Specification


  • Bucket type
  • Bucket
  • Rated load
  • 5T
  • Bucket capacity
  • 3.0m3
  • Dump height
  • 3040mm
  • Reach at full lift 45 discharge
  • 1290mm
  • Overall length
  • 7380mm
  • Overall height
  • 3240mm
  • Width over tires
  • 2990mm
  • Tread width
  • 1900mm
  • Turning radius(bucket in carry position)
  • 6180mm
  • Turning angle
  • 35º
  • Grade ability
  • ≥28º
  • Max. traction force
  • 150KN
  • Max. breakout force
  • 160KN
  • Vehicle speed
  •
  • Forward 1
  • 0-11.5Km/h
  • Forward 2
  • 0-38Km/h
  • Reverse
  • 0-16Km/h
  • Time of raise
  • 5.8sec
  • Hydraulic cycle time
  • 12sec
